Flat Patios Cockburn

Hamilton Hill and Spearwood carry the older stock. Postwar and market-garden era houses on generous blocks, often with a shed, a bore and mature fruit trees still in the yard.

The coastal strip through Coogee, North Coogee and Port Coogee is mostly new. Two-storey homes on tight lots, courtyards rather than yards, and the harshest exposure in the council area.

Success, Atwell, Aubin Grove, Beeliar and Hammond Park are the estate belt. Project homes from the 2000s onward, an alfresco already under the main roof, and a rectangle of lawn people want covered.

Those three groups pull the design in different directions. The old Spearwood blocks have room for a freestanding structure, the estate lots need every centimetre accounted for, and the coastal strip is dictated by exposure before anything else is decided.

Spearwood is named for the dune system it sits on, and the limestone in that system is not always deep. Through the older coastal suburbs a footing hole can meet hard cap well above the depth the schedule called for.

It changes the tool rather than the outcome. Coring gets through, and where the rock sits consistently high the engineer may design the footing to bear on it instead of chasing depth in sand.

There is an upside worth naming. Sand and limestone together drain fast, so the stormwater side of a Cockburn job is usually the simplest part of it.

People sometimes assume the Sound is mild enough to skip coastal specification. The waves are smaller, but the air over that water is still salt-laden, and salt is what corrodes a fixing.

So the spec follows distance from the water rather than the size of the surf. Along the coastal strip that means marine-grade Colorbond, stainless fasteners, and no dissimilar metals sitting in direct contact.

Further east it genuinely does not apply. Specifying marine grade in Atwell buys nothing you can point to in ten years, and we will say so rather than quietly add it to the price.

A string of wetlands runs north to south through this council, from North Lake and Bibra Lake down through Yangebup and Thomsons Lake. The suburbs around them are sandy, and they can still be wet.

Groundwater is the reason. Near the lake margins the seasonal water table sits high enough that a deep soakwell is partly submerged in winter, which leaves it nowhere to discharge when a front arrives.

The fix is layout rather than volume alone. Shallower wells spread across a wider footprint, set above the winter level, do more than fewer deep ones sitting in groundwater all season.

Knowing the level beforehand is what makes that possible. Bore data and a look at the block in the wet months tell you far more than a soil map, and the answer changes where the downpipes run as well as how deep the wells go.

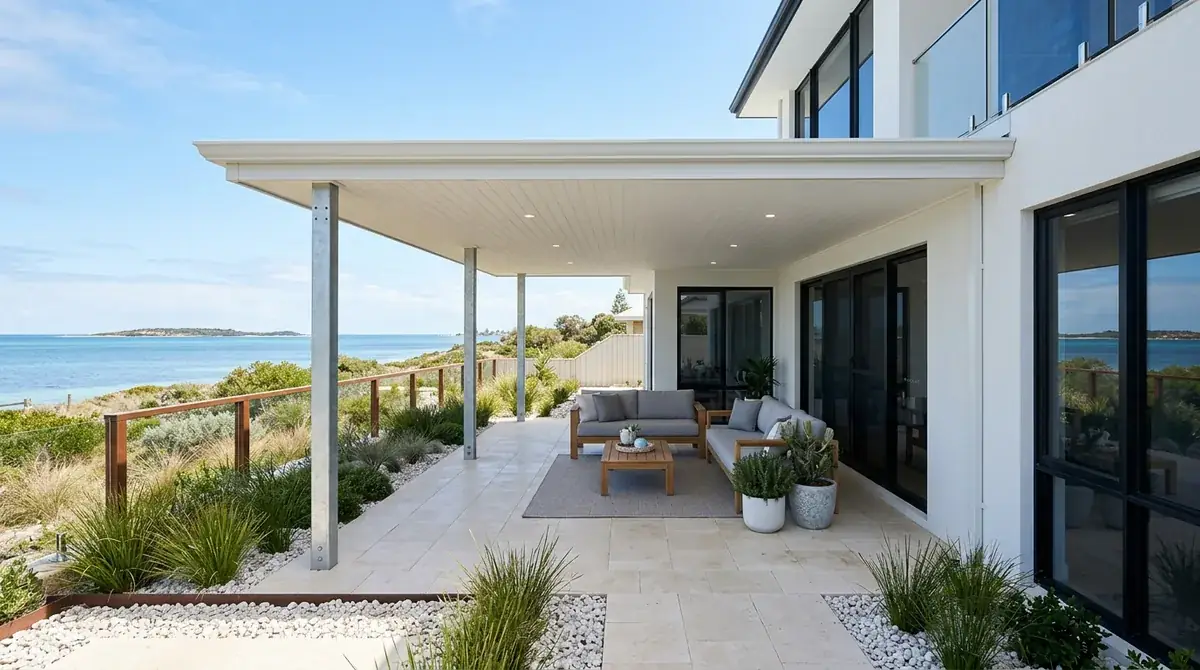

The marina precinct at Port Coogee is the most demanding address here. Water on one side, very little between the houses and it, and a lot of exposed metal in a small area.

Everything goes to the top of the specification. Marine-grade sheet, stainless throughout including brackets and flashing fixings, sealed penetrations, and a maintenance routine that is part of the build conversation rather than an afterthought.

Design guidelines are common through that precinct as well. Where they apply they can have a view on colours and on what is visible from the water, so the title documents are worth reading before a roof colour is chosen.

A patio is Class 10a work, so a building permit from the City of Cockburn is required before construction starts. The application carries a site plan, elevations, structural engineering for the assessed wind classification and a stormwater design.

Class 10a can be lodged uncertified for the council to assess, or certified with a certificate of design compliance from a registered building surveyor already in the pack.

Two local details are worth flagging. Coastal addresses need engineering that reflects the real exposure, and near the lakes the stormwater design has to account for groundwater rather than just soil type.

Development approval is the separate question, governed by the R-Codes on the estate lots. Boundary setbacks, remaining open space and whether an uncovered outdoor living area survives the new roof are the provisions that come up most often here.
