Flat Patios Belmont

Aircraft noise is the first thing people mention on a Belmont site measure. Redcliffe and parts of Ascot and Belmont sit close under the Perth Airport flight paths, and the traffic runs early and late.

A patio roof does not fix that, and we will not pretend otherwise. What an insulated panel roof does do is take the hard edge off rain noise and give you a finished ceiling instead of the underside of steel.

It also changes the screening conversation. Where the noise comes from above, side screens buy you wind protection and privacy rather than quiet, so that money is usually better spent on the roof build-up.

The low ground along the Swan carries alluvial and Guildford Formation soil. Real clay content, seasonal movement, and a water table that comes up in winter closer to the surface than anyone would like.

Footings get designed for ground that moves rather than ground that sits still. That is a site classification question, and it is answered by looking at the block rather than the postcode.

The same ground slows a soakwell down. Water leaves a well into clay at a fraction of the rate it leaves one into sand, so the array gets sized for the soil you actually have.

Belmont has taken on a lot of density. Old quarter-acre blocks around Rivervale, Cloverdale and Belmont have been split into survey-strata lots, and the highway frontage has filled with townhouses.

The brief changes with the block. Instead of a five-metre-deep roof over a lawn, it becomes a three-metre cover over paving with a boundary wall on one side and a driveway on the other.

Two things then decide the design. Where a post can physically stand, and how low the roof can sit while you still walk under it comfortably.

Inland Perth runs hotter than the coast, and the sea breeze that cools a beachside yard at two in the afternoon reaches Belmont later and weaker. Paved courtyards and dark roofs make it worse.

That is a genuine argument for insulated roof panel rather than single-skin Colorbond. The foam core slows radiant heat through the sheet, and the underside stays noticeably cooler to stand under.

Colour does real work too. A lighter Colorbond in a solar-reflective finish absorbs less than a dark one, and on a low roof over paving you feel that difference by mid afternoon.

Stormwater off new roof area has to be disposed of on your own land. On the flats that means soakwells sized against the catchment, the design storm the council nominates, and the infiltration rate of the soil under them.

Groundwater is the second half of the problem. Near the river the winter water table can sit high enough that a deep well is partly full before the first drop of roof water reaches it.

So the array goes wider and shallower rather than deeper. The overflow route gets drawn on the plan as well, because on flat ground water finds the lowest point whether you planned for it or not.

A patio is a Class 10a structure under the National Construction Code, so a building permit is needed before construction starts. The City of Belmont wants a site plan, elevations, structural engineering and a stormwater design.

Class 10a work can be lodged uncertified for the council to assess, or certified with a certificate of design compliance from a registered building surveyor already attached.

Development approval is the separate track. On the smaller post-subdivision lots it is setbacks, open space and the required outdoor living area that decide whether the R-Codes deemed-to-comply path still applies.

Strata is the step people forget. If the property is survey-strata or built strata, the strata company generally has to agree before the council application means very much.

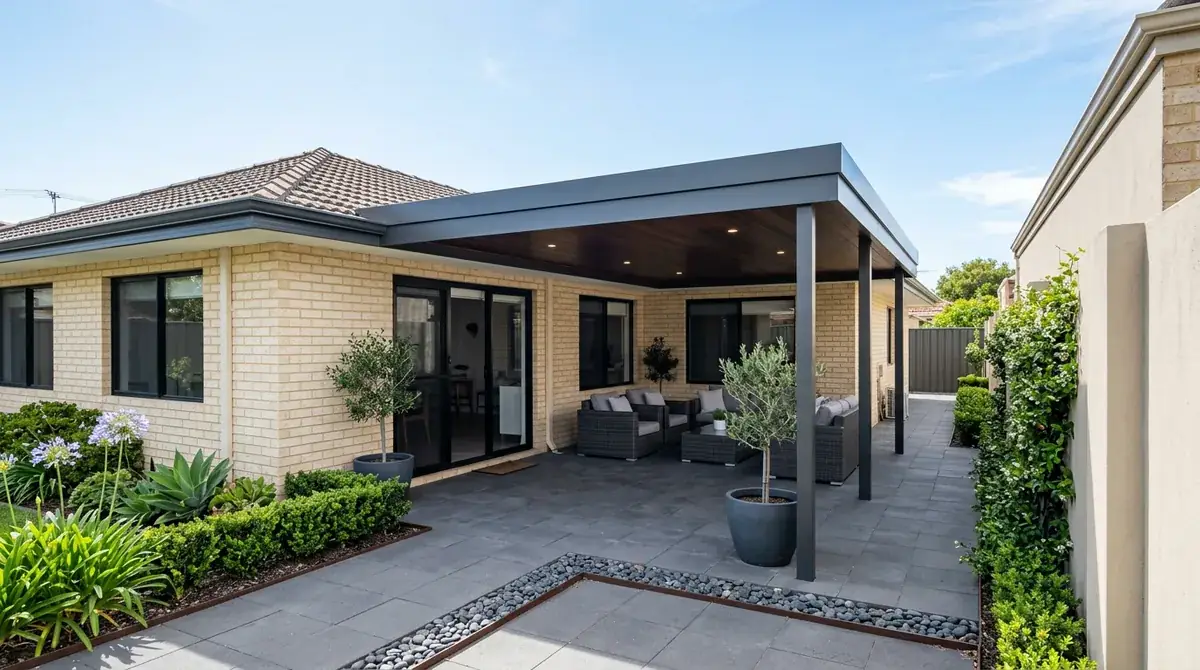

A flat patio roof is not actually flat. It runs a slight fall so water clears, and on a Belmont courtyard hemmed in by a boundary wall and a driveway there are only so many directions that fall can go.

Shedding toward the neighbour is not one of them. Water off your roof has to stay on your land, so the low edge and the gutter end up on the side where a downpipe can physically reach a soakwell.

That one decision usually sets the whole structure. It fixes which end the beam is deepest, where the posts stand, and how much headroom is left at the low corner.
